Information
Aluminium Expanded Metal Facade Mesh can be custom make to provide a unique appealing architectural look for commercial & residential buildings.
Specification
| Ref. No. | Material | Nominal Mesh Size | Thickness (±10%) (mm) | Strand Width (±10%) (mm) | Weight (±10%)kg/m2 | *Standard Sheet Size SWM X LWM (mm) | |
|---|---|---|---|---|---|---|---|
| SWM (mm) | LWM (mm) | ||||||
| SM15016A SM20016A SM20015A SM30016A SM20030A SM30030A | Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium | 42 42 45 48 70 70 | 115 115 135 135 150 150 | 1.5 2.0 2.0 3.0 2.0 3.0 | 16 16 15 16 30 30 | 3.1 4.2 3.9 5.5 4.7 7 | 2440 X 1220 2440 X 1220 2440 X 1220 2440 X 1220 2440 X 1220 2440 X 1220 |

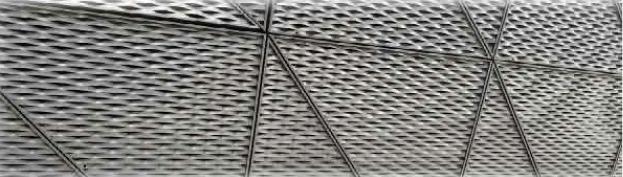

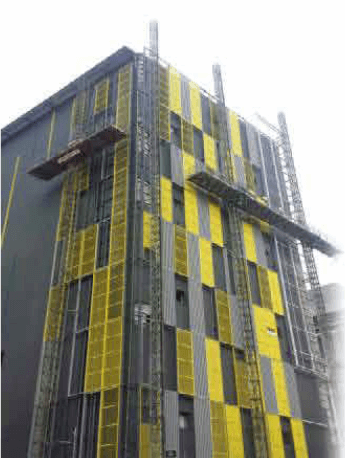

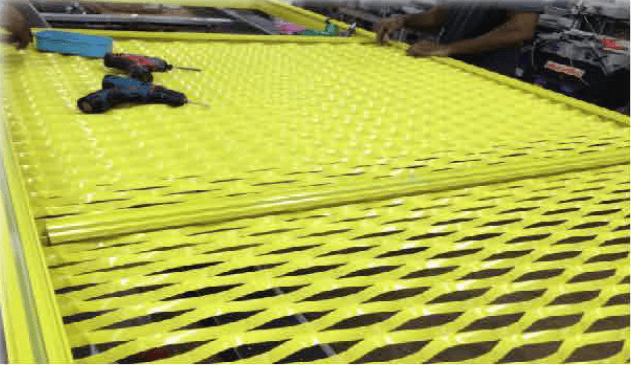

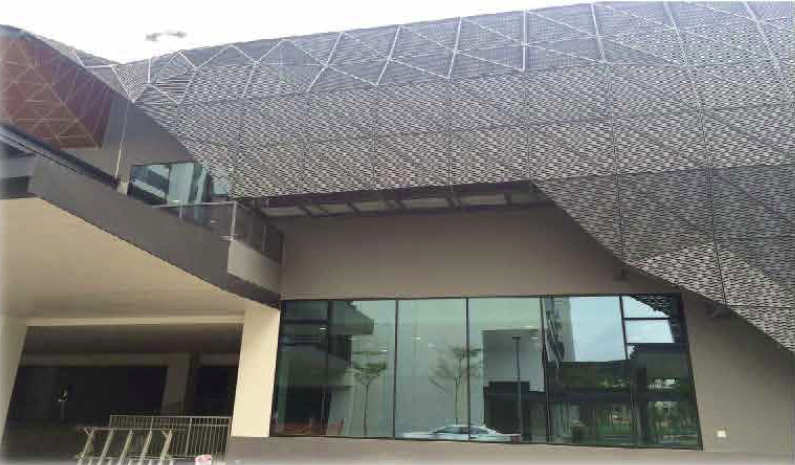

Gallery
